Vega

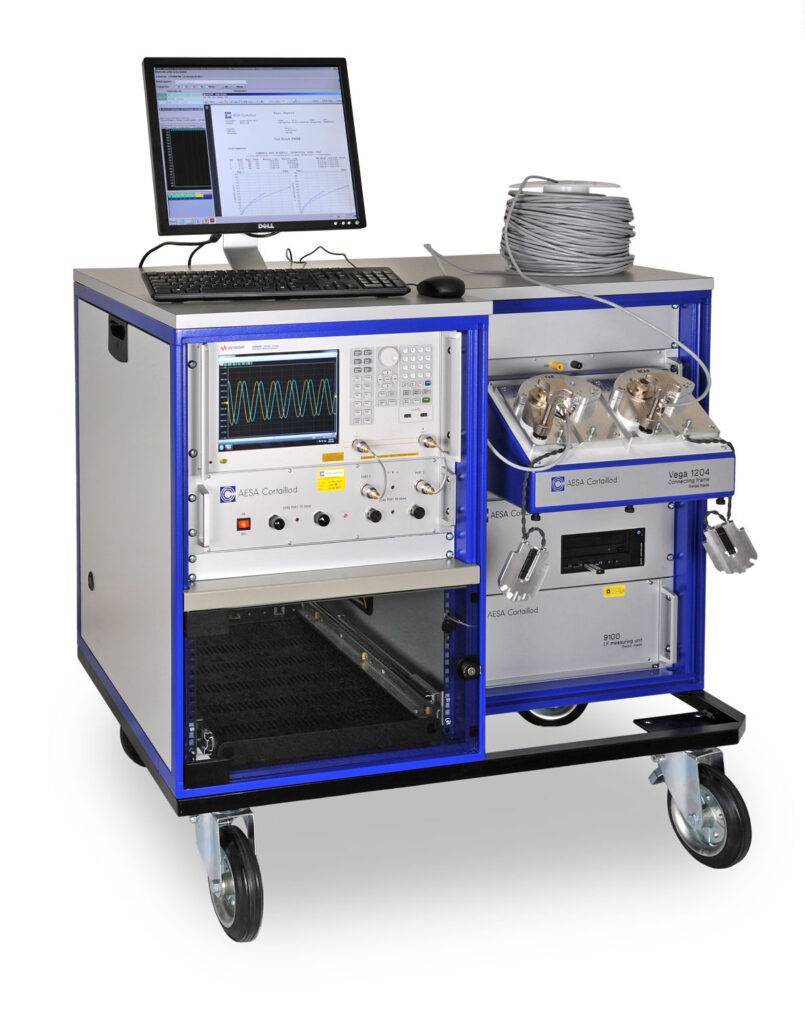

Vega systems - Automatic LF/HF measuring system for LAN cables Cat 5 to Cat 8 Looking for an effective solution for testing LAN cables up to Cat 8? Fitted with ultra-reliable relays, the Vega system offers you the fastest and most reproducible solution on the market to test LAN cables up to 2 GHz.
Key Features
Specs and datasheet
Download
Key Features
- High Accuracy
- Fast measurement, 3-4 minutes for a complete 4 pairs cable caracterization
- Easy to operate with our user-friendly software
- Performs all tests responding to Methods:
- ANSI/TIA-568.2-D series and IEC 61935-1 Cables
- ANSI/TIA-568.2-D series, IEC 61156 series and YD/T 1019-2023
Specs and datasheet
- Frequency range: 0.772MHz to 2.2GHz (various models available)
- Diameter max 1.2 mm (17 AWG)
- Different models:

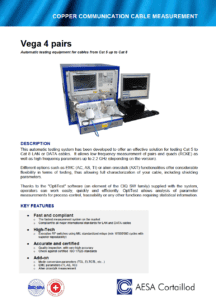

- Vega standard

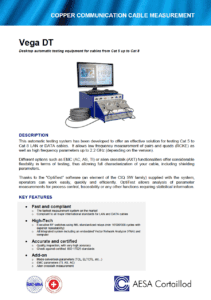

- Vega DT (desktop) including embedded VNA

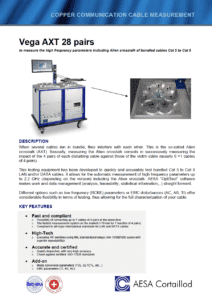

- Vega AXT (28 pairs)
Download
