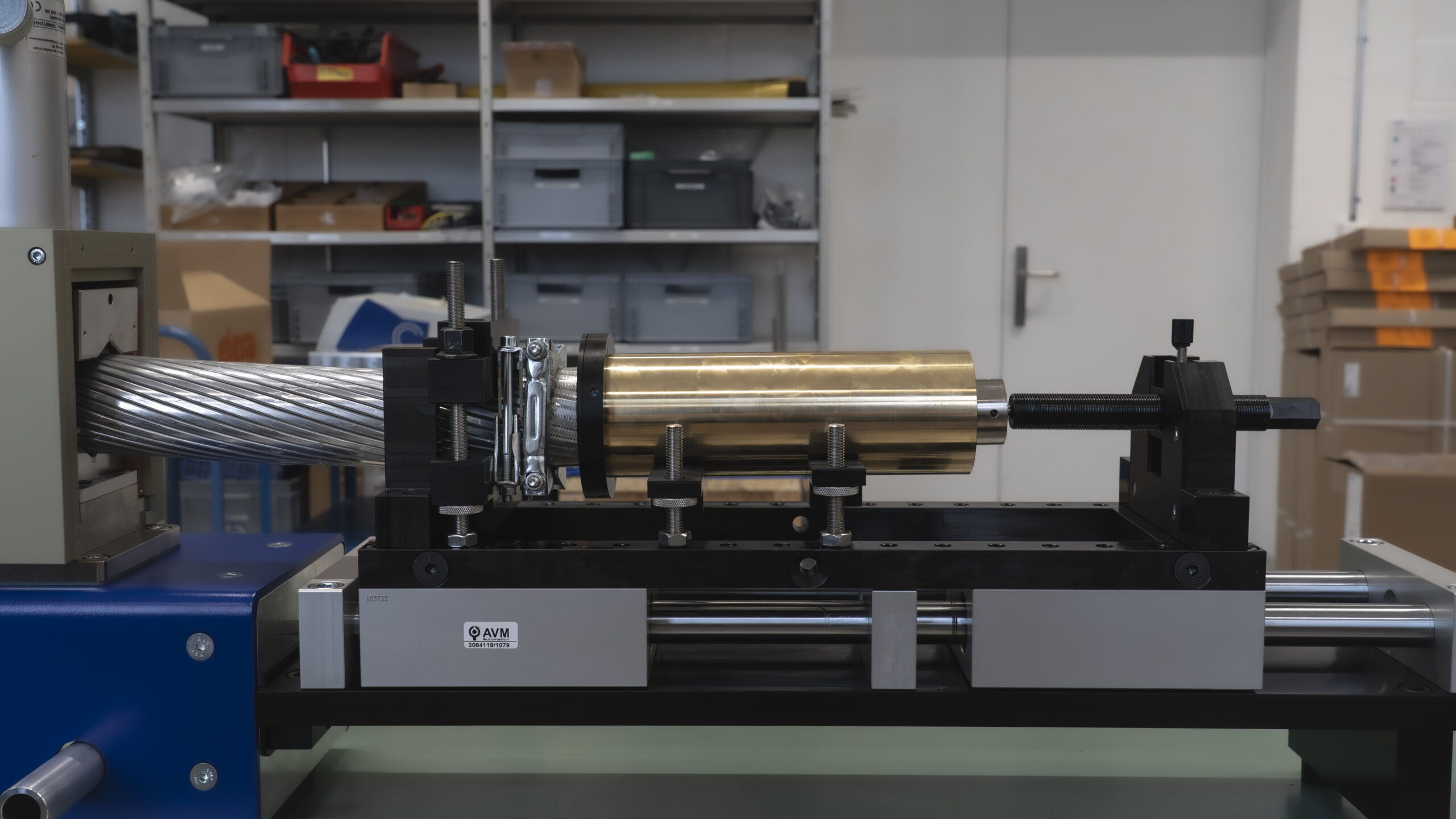

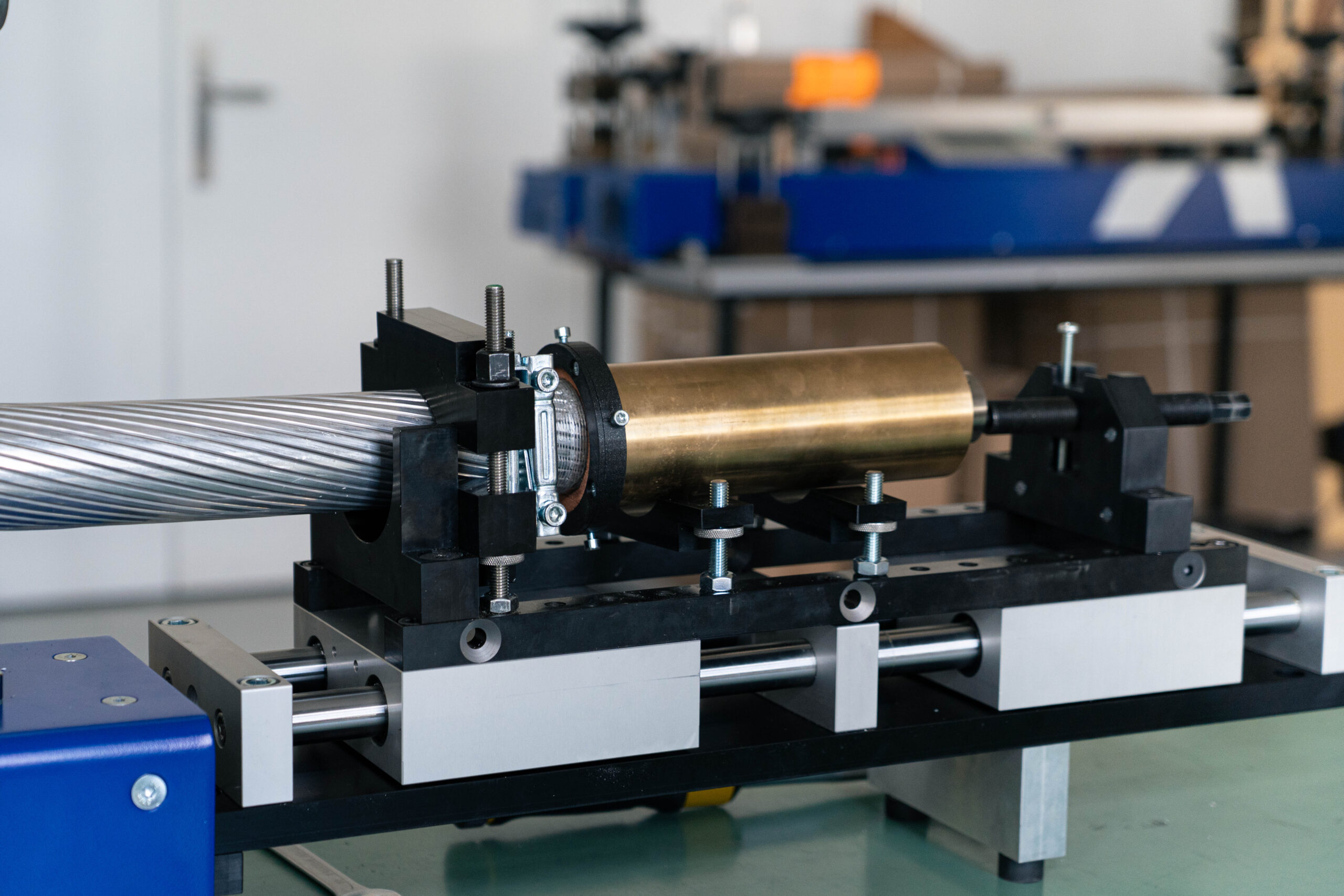

Axial Injection
AESA has developed a new and patent filed method of measuring the linear resistance of electrical conductors by axial current injection. The current is injected axially , rather than transversely. Each wire in the conductor is in direct contact with the current source, thus minimizing the contact resistance effect between wires. As a result, the accuracy and reliability of the measurement are significantly improved while paving the way to measure the linear resistance for Miliken cables and waterproofing cables.
Key Features
Specs and datasheet
Download
Key Features
- Increased accuracy:

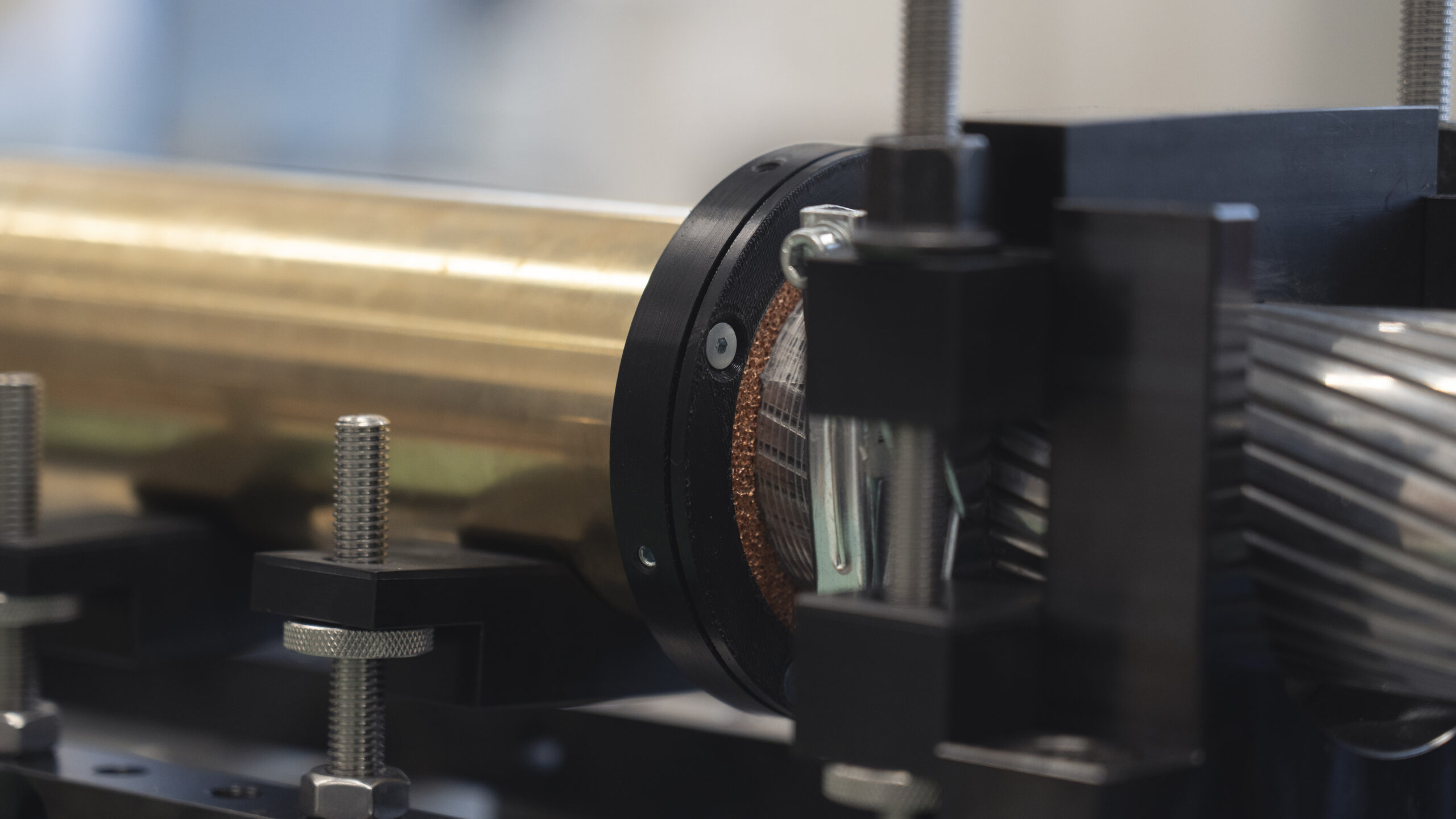

- Each wire is in contact with the power source
- Far less sensitive for aluminium oxidation between wires
- Kelvin method (4 points) according to the standard IEC 60468
- New measurement opportunities:
- Aluminium conductors, increase of accuracy.
- Very large cross sections
- Improves results on waterproofing cables such as Milliken and Aquablock
- User friendly:
- Both axial and radial modes available on the same unit
- The software takes care of current injection and measuring mode
- Generally, elder equipment can be upgraded.

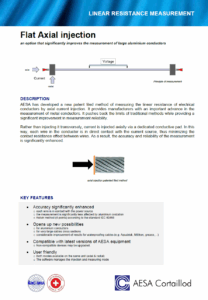

Specs and datasheet
- The installation of the axial connectors requires the machining of the cable ends. The appropriated connectors and drilling tooling for copper and aluminium are included in the kit.
- 3 kits are available for different cables sizes:
